Axyl Greet W

  • Axyl Greet W

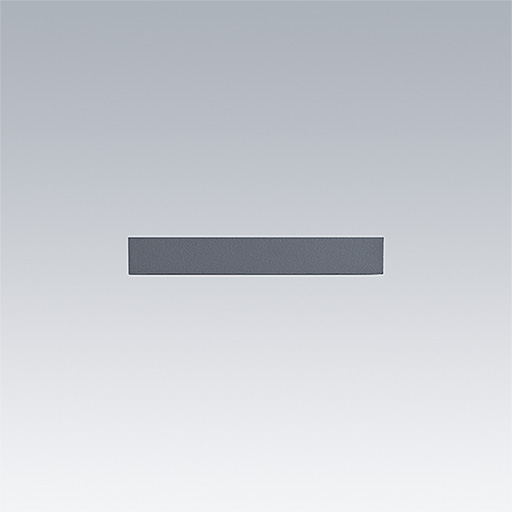

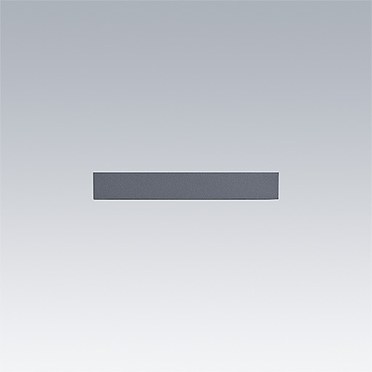

Axyl Greet W est une applique murale rectangulaire au design simple et élégant pour une installation aux abords de bâtiments

  • Élégante applique murale disponible en deux hauteurs (moyenne, grande) et en quatre couleurs Thorn standard (gris, anthracite, noir, blanc)
  • Permet un éclairage large et uniforme, idéal pour créer une ambiance relaxante aux abords d’un bâtiment tout en assurant un grand confort visuel. Disponible vers le bas et vers le haut / bas
  • Disponible en 2700 K, 3000 K, 4000 K et IRC 90
  • Axyl Greet W est disponible en version non dimmable ou DALI2 (convertisseur à distance en option).
  • L’attestation internationale Dark Sky ne concerne que les appareils ≤ 3000 K avec possibilité de gradation et avec un éclairage vers le bas uniquement. Les luminaires doivent être montés avec un photomètre

Prescription

Elegant rectangular wall light available in two sizes (medium, large) and four standard colours (grey, anthracite, black, white). Axyl Greet is also available as a bollard to provide a visual identity for the entire project. Extensive unidirectional or bidirectional light distribution to create a warm atmosphere. Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential applications and building entrances.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK06.
Dark-Sky certified.
As Thorn Axyl Greet Wall

New Product
LumExpress Product
Produit eControl

▼ Axyl Greet W, moyen, vers le bas

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL GREETW M DWN 28L 927 WB HF ANT9672LED0.8796700588
AXYL GREETW M DWN 28L 927 WB HF BK9672LED0.8796700586
AXYL GREETW M DWN 28L 927 WB HF GY9672LED0.8796700587
AXYL GREETW M DWN 28L 927 WB HF WH9672LED0.8796700585
AXYL GREETW M DWN 28L 927 WB RD ANT9672LED0.8796701623
AXYL GREETW M DWN 28L 927 WB RD BK9672LED0.8796701621
AXYL GREETW M DWN 28L 927 WB RD GY9672LED0.8796701622
AXYL GREETW M DWN 28L 927 WB RD WH9672LED0.8796701620
AXYL GREETW M DWN 28L 930 WB HF ANT9691LED0.8796700596
AXYL GREETW M DWN 28L 930 WB HF BK9691LED0.8796700594
AXYL GREETW M DWN 28L 930 WB HF GY9691LED0.8796700595
AXYL GREETW M DWN 28L 930 WB HF WH9691LED0.8796700593
AXYL GREETW M DWN 28L 930 WB RD ANT9691LED0.8796701631
AXYL GREETW M DWN 28L 930 WB RD BK9691LED0.8796701629
AXYL GREETW M DWN 28L 930 WB RD GY9691LED0.8796701630
AXYL GREETW M DWN 28L 930 WB RD WH9691LED0.8796701628
AXYL GREETW M DWN 28L 940 WB HF ANT9706LED0.8796700592
AXYL GREETW M DWN 28L 940 WB HF BK9706LED0.8796700590
AXYL GREETW M DWN 28L 940 WB HF GY9706LED0.8796700591
AXYL GREETW M DWN 28L 940 WB HF WH9706LED0.8796700589
AXYL GREETW M DWN 28L 940 WB RD ANT9706LED0.8796701627
AXYL GREETW M DWN 28L 940 WB RD BK9706LED0.8796701625
AXYL GREETW M DWN 28L 940 WB RD GY9706LED0.8796701626
AXYL GREETW M DWN 28L 940 WB RD WH9706LED0.8796701624

▼ Axyl Greet W, moyen, vers le haut / vers le bas

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL GREETW M U/D 28L 927 WB HF ANT9644LED0.8396700600
AXYL GREETW M U/D 28L 927 WB HF BK9644LED0.8396700598
AXYL GREETW M U/D 28L 927 WB HF GY9644LED0.8396700599
AXYL GREETW M U/D 28L 927 WB HF WH9644LED0.8396700597
AXYL GREETW M U/D 28L 927 WB RD ANT9644LED0.8396701635
AXYL GREETW M U/D 28L 927 WB RD BK9644LED0.8396701633
AXYL GREETW M U/D 28L 927 WB RD GY9644LED0.8396701634
AXYL GREETW M U/D 28L 927 WB RD WH9644LED0.8396701632
AXYL GREETW M U/D 28L 930 WB HF ANT9662LED0.8396700608
AXYL GREETW M U/D 28L 930 WB HF BK9662LED0.8396700606
AXYL GREETW M U/D 28L 930 WB HF GY9662LED0.8396700607
AXYL GREETW M U/D 28L 930 WB HF WH9662LED0.8396700605
AXYL GREETW M U/D 28L 930 WB RD ANT9662LED0.8396701643
AXYL GREETW M U/D 28L 930 WB RD BK9662LED0.8396701641
AXYL GREETW M U/D 28L 930 WB RD GY9662LED0.8396701642
AXYL GREETW M U/D 28L 930 WB RD WH9662LED0.8396701640
AXYL GREETW M U/D 28L 940 WB HF ANT9677LED0.8396700604
AXYL GREETW M U/D 28L 940 WB HF BK9677LED0.8396700602
AXYL GREETW M U/D 28L 940 WB HF GY9677LED0.8396700603
AXYL GREETW M U/D 28L 940 WB HF WH9677LED0.8396700601
AXYL GREETW M U/D 28L 940 WB RD ANT9677LED0.8396701639
AXYL GREETW M U/D 28L 940 WB RD BK9677LED0.8396701637
AXYL GREETW M U/D 28L 940 WB RD GY9677LED0.8396701638
AXYL GREETW M U/D 28L 940 WB RD WH9677LED0.8396701636

▼ Axyl Greet W, grand, vers le bas

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL GREETW L DWN 56L 927 WB HF ANT121082LED1.7396700612
AXYL GREETW L DWN 56L 927 WB HF BK121082LED1.7396700610
AXYL GREETW L DWN 56L 927 WB HF GY121082LED1.7396700611
AXYL GREETW L DWN 56L 927 WB HF WH121082LED1.7396700609
AXYL GREETW L DWN 56L 927 WB RD ANT121082LED1.7396701647
AXYL GREETW L DWN 56L 927 WB RD BK121082LED1.7396701645
AXYL GREETW L DWN 56L 927 WB RD GY121082LED1.7396701646
AXYL GREETW L DWN 56L 927 WB RD WH121082LED1.7396701644
AXYL GREETW L DWN 56L 930 WB HF ANT121113LED1.7396700620
AXYL GREETW L DWN 56L 930 WB HF BK121113LED1.7396700618
AXYL GREETW L DWN 56L 930 WB HF GY121113LED1.7396700619
AXYL GREETW L DWN 56L 930 WB HF WH121113LED1.7396700617
AXYL GREETW L DWN 56L 930 WB RD ANT121113LED1.7396701655
AXYL GREETW L DWN 56L 930 WB RD BK121113LED1.7396701653
AXYL GREETW L DWN 56L 930 WB RD GY121113LED1.7396701654
AXYL GREETW L DWN 56L 930 WB RD WH121113LED1.7396701652
AXYL GREETW L DWN 56L 940 WB HF ANT121138LED1.7396700616
AXYL GREETW L DWN 56L 940 WB HF BK121138LED1.7396700614
AXYL GREETW L DWN 56L 940 WB HF GY121138LED1.7396700615
AXYL GREETW L DWN 56L 940 WB HF WH121138LED1.7396700613
AXYL GREETW L DWN 56L 940 WB RD ANT121138LED1.7396701651
AXYL GREETW L DWN 56L 940 WB RD BK121138LED1.7396701649
AXYL GREETW L DWN 56L 940 WB RD GY121138LED1.7396701650
AXYL GREETW L DWN 56L 940 WB RD WH121138LED1.7396701648

▼ Axyl Greet W, grand, vers le haut / vers le bas

DescriptionPuissance système (W)Flux sortant (lm)   TypePoids (kg)Code SAP
AXYL GREETW L U/D 56L 927 WB HF ANT121029LED1.6696700624
AXYL GREETW L U/D 56L 927 WB HF BK121029LED1.6696700622
AXYL GREETW L U/D 56L 927 WB HF GY121029LED1.6696700623
AXYL GREETW L U/D 56L 927 WB HF WH121029LED1.6696700621
AXYL GREETW L U/D 56L 927 WB RD ANT121029LED1.6696701659
AXYL GREETW L U/D 56L 927 WB RD BK121029LED1.6696701657
AXYL GREETW L U/D 56L 927 WB RD GY121029LED1.6696701658
AXYL GREETW L U/D 56L 927 WB RD WH121029LED1.6696701656
AXYL GREETW L U/D 56L 930 WB HF ANT121058LED1.6696700632
AXYL GREETW L U/D 56L 930 WB HF BK121058LED1.6696700630
AXYL GREETW L U/D 56L 930 WB HF GY121058LED1.6696700631
AXYL GREETW L U/D 56L 930 WB HF WH121058LED1.6696700629
AXYL GREETW L U/D 56L 930 WB RD ANT121058LED1.6696701667
AXYL GREETW L U/D 56L 930 WB RD BK121058LED1.6696701665
AXYL GREETW L U/D 56L 930 WB RD GY121058LED1.6696701666
AXYL GREETW L U/D 56L 930 WB RD WH121058LED1.6696701664
AXYL GREETW L U/D 56L 940 WB HF ANT121081LED1.6696700628
AXYL GREETW L U/D 56L 940 WB HF BK121081LED1.6696700626
AXYL GREETW L U/D 56L 940 WB HF GY121081LED1.6696700627
AXYL GREETW L U/D 56L 940 WB HF WH121081LED1.6696700625
AXYL GREETW L U/D 56L 940 WB RD ANT121081LED1.6696701663
AXYL GREETW L U/D 56L 940 WB RD BK121081LED1.6696701661
AXYL GREETW L U/D 56L 940 WB RD GY121081LED1.6696701662
AXYL GREETW L U/D 56L 940 WB RD WH121081LED1.6696701660
