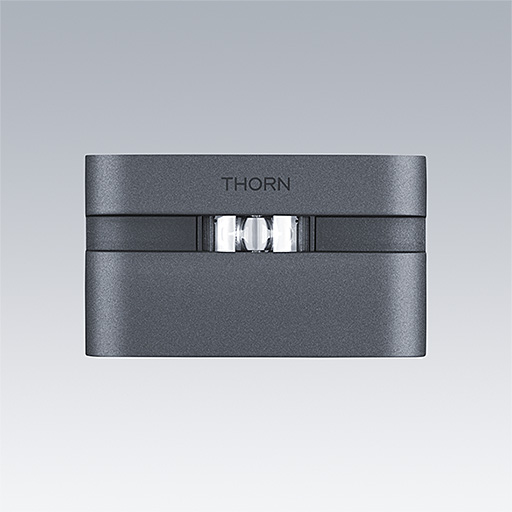

Axyl Etch
Axyl Etch est une applique carrée pour embrasures de fenêtres
- Applique murale disponible en quatre couleurs standard (gris, anthracite, noir, blanc)
- Émet un faisceau lumineux étroit (170° x 10°) permettant d'éclairer de grandes ouvertures.
- Disponible en 2700 K, 3000 K, 4000 K et IRC 80
- Axyl Etch est disponible en version non dimmable ou DALI2 (convertisseur à distance en option).
Matériaux et finition
Boîtier en aluminium moulé sous pression.
Diffuseur en polycarbonate transparent.
Joints en silicone.
Finition avec double thermopoudrage.
Idéal pour C3 (classe de résistance à la corrosion standard conformément à la norme ISO 9223:2012).
Installation et montage
Pour un montage au mur, avec 2 points de fixation pour un positionnement précis.
Vis permettant de régler la planéité jusqu'à 5° d'inclinaison.
Ancrages et vis non fournis.
Pré-câblage avec un câble de 1,5 m.
Le convertisseur à distance DALI-2 doit être commandé séparément.
Prescription
To specify state:
Compact luminaire specifically designed for window frames and arches, available in four standard colours (grey, anthracite, black, white). The optics, specifically designed for Axyl Etch, create an intensive 10x170° beam that is ideal for this application.
Available in 2700K, 3000K and 4000K with a CRI of 80, ideal for residential or public areas and historic facades.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK10.
As Thorn Axyl Etch
