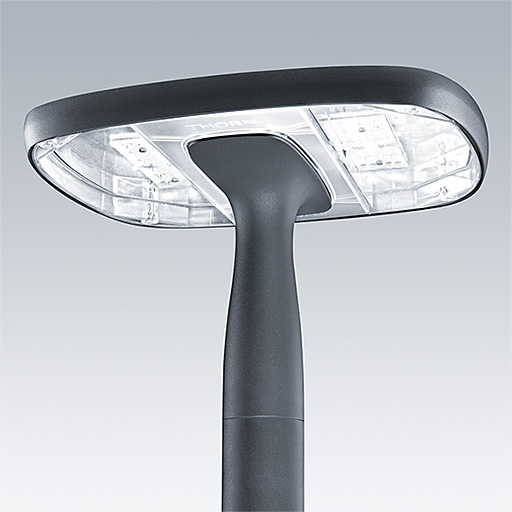

FleXity
Onopvallende en veelzijdige LED-armatuur met een snel rendement op investeringen voor stedelijke verlichtingstoepassingen
- Moderne, onopvallende en veelzijdige paaltop LED-armatuur die gemakkelijk in het stadsgezicht en woonomgevingen te integreren is
- 100.000 uur onderhoudsvrij leven voor een snel rendement op investeringen en lage totale eigendomskosten
- LED-lichtbron, speciale optiek en geïntegreerde bi-power dimfunctie voor energiebesparing
- Twee behuizingen: helder voor optimale opbrengst en diffuus voor optimaal comfort
Materialen en Afwerking
Overkapping en voet: gegoten aluminium (EN AC-46100), gepoedercoat donkergrijs (benadert RAL 7043) of lichtgrijs (benadert RAL 9006)
Vlakke lichtkappen: doorzichtige diffusor van UV-gestabiliseerd polycarbonaat
Installatie en Montage
Aanbevolen installatiehoogte: 3 tot 6m
Distributie: helder glas: symmetrisch of asymmetrisch (straatoptiek) en diffuus: radiaal symmetrisch
Paaltopbevestiging op insteek/palen Ø60mm of Ø76mm. Interne hoogte voet: 75mm
5 meter bedrade versie verkrijgbaar
Connectorversie geleverd met 1m draad en connector
Specificatie
To specify state:
Modern and discreet urban lantern with 100 000 hour lifetime with no maintenance required and providing from 1630 to 6330 Llm. No spare parts required.
As Thorn FleXity.
New Product
LumExpress Product
eControl Product
▼ FleXity, 250 mA, diffuus - radiaal symmetrische lichtverdeling
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L25-730 OP CL1 W5 T60 ANT | 20 | 2188 | LED | 4.50 | 96270775 | ||||
| <FLEX 24L25-730 OP CL1 W5 T60 GY | 20 | 2188 | LED | 4.50 | 96642805 | ||||
| <FLEX 24L25-730 OP CL1 W5 T76 ANT | 20 | 2188 | LED | 4.70 | 96270783 | ||||
| <FLEX 24L25-730 OP CL2 W5 T60 ANT | 20 | 2188 | LED | 4.50 | 96270771 | ||||
| <FLEX 24L25-730 OP CL2 W5 T60 GY | 20 | 2188 | LED | 4.50 | 96642801 | ||||
| <FLEX 24L25-730 OP CL2 W5 T76 ANT | 20 | 2188 | LED | 4.70 | 96270779 | ||||
| <FLEX 24L25-740 OP CL1 W5 T60 ANT | 20 | 2393 | LED | 4.50 | 96270776 | ||||
| <FLEX 24L25-740 OP CL1 W5 T76 ANT | 20 | 2393 | LED | 4.70 | 96270784 | ||||
| <FLEX 24L25-740 OP CL2 W5 T60 ANT | 20 | 2393 | LED | 4.50 | 96270772 | ||||
| <FLEX 24L25-740 OP CL2 W5 T60 GY | 20 | 2393 | LED | 4.50 | 96642802 | ||||
| <FLEX 24L25-740 OP CL2 W5 T76 ANT | 20 | 2393 | LED | 4.70 | 96270780 |
▼ FleXity 250mA clear - symmetric distribution
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L25-730 WSC-S CL1 W5 T60 ANT | 20 | 2343 | LED | 4.50 | 96271207 | ||||
| <FLEX 24L25-730 WSC-S CL1 W5 T60 GY | 20 | 2343 | LED | 4.50 | 96642878 | ||||
| <FLEX 24L25-730 WSC-S CL1 W5 T76 ANT | 20 | 2343 | LED | 4.70 | 96271211 | ||||
| <FLEX 24L25-730 WSC-S CL2 W5 T60 ANT | 20 | 2343 | LED | 4.50 | 96271205 | ||||
| <FLEX 24L25-730 WSC-S CL2 W5 T60 GY | 20 | 2343 | LED | 4.50 | 96642876 | ||||
| <FLEX 24L25-730 WSC-S CL2 W5 T76 ANT | 20 | 2343 | LED | 4.70 | 96271209 | ||||
| <FLEX 24L25-740 WSC-S CL1 W5 T60 ANT | 20 | 2562 | LED | 4.50 | 96271208 | ||||
| <FLEX 24L25-740 WSC-S CL1 W5 T76 ANT | 20 | 2562 | LED | 4.70 | 96271212 | ||||
| <FLEX 24L25-740 WSC-S CL1 W5 T76 GY | 20 | 2562 | LED | 4.70 | 96642883 | ||||
| <FLEX 24L25-740 WSC-S CL2 W5 T60 ANT | 20 | 2562 | LED | 4.50 | 96271206 | ||||
| <FLEX 24L25-740 WSC-S CL2 W5 T60 GY | 20 | 2562 | LED | 4.50 | 96642877 | ||||
| <FLEX 24L25-740 WSC-S CL2 W5 T76 ANT | 20 | 2562 | LED | 4.70 | 96271210 |
▼ FleXity 250mA clear - asymmetric distribution (street optic)
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L25-730 WSC CL1 W5 T60 ANT | 20 | 2343 | LED | 4.50 | 96271223 | ||||
| <FLEX 24L25-730 WSC CL1 W5 T60 GY | 20 | 2343 | LED | 4.50 | 96642886 | ||||
| <FLEX 24L25-730 WSC CL1 W5 T76 ANT | 20 | 2343 | LED | 4.70 | 96271227 | ||||
| <FLEX 24L25-730 WSC CL2 W5 T60 ANT | 20 | 2343 | LED | 4.50 | 96271221 | ||||
| <FLEX 24L25-730 WSC CL2 W5 T60 GY | 20 | 2343 | LED | 4.50 | 96642884 | ||||
| <FLEX 24L25-730 WSC CL2 W5 T76 ANT | 20 | 2343 | LED | 4.70 | 96271225 | ||||
| <FLEX 24L25-740 WSC CL1 W5 T60 ANT | 20 | 2562 | LED | 4.50 | 96271224 | ||||
| <FLEX 24L25-740 WSC CL1 W5 T60 GY | 20 | 2562 | LED | 4.50 | 96642887 | ||||
| <FLEX 24L25-740 WSC CL1 W5 T76 ANT | 20 | 2562 | LED | 4.70 | 96271228 | ||||
| <FLEX 24L25-740 WSC CL2 W5 T60 ANT | 20 | 2562 | LED | 4.50 | 96271222 | ||||
| <FLEX 24L25-740 WSC CL2 W5 T60 GY | 20 | 2562 | LED | 4.50 | 96642885 | ||||
| <FLEX 24L25-740 WSC CL2 W5 T76 ANT | 20 | 2562 | LED | 4.70 | 96271226 |
▼ FleXity, 250 mA, helder - extra brede lichtspreiding (straatoptiek)
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L25-740 EWR CL1 CON T60 ANT | 20 | 2617 | LED | 4.50 | 96627907 |
▼ FleXity 500mA clear - symmetric distribution
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L50-730 WSC-S CL1 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270777 | ||||
| <FLEX 24L50-730 WSC-S CL1 W5 T60 GY | 40 | 4360 | LED | 4.50 | 96642807 | ||||
| <FLEX 24L50-730 WSC-S CL1 W5 T76 ANT | 40 | 4360 | LED | 4.70 | 96270785 | ||||
| <FLEX 24L50-730 WSC-S CL2 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270773 | ||||
| <FLEX 24L50-730 WSC-S CL2 W5 T60 GY | 40 | 4360 | LED | 4.50 | 96642803 | ||||
| <FLEX 24L50-730 WSC-S CL2 W5 T76 ANT | 40 | 4360 | LED | 4.70 | 96270781 | ||||
| <FLEX 24L50-740 WSC-S CL1 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270778 | ||||
| <FLEX 24L50-740 WSC-S CL1 W5 T60 GY | 40 | 4769 | LED | 4.50 | 96642808 | ||||
| <FLEX 24L50-740 WSC-S CL1 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270786 | ||||
| <FLEX 24L50-740 WSC-S CL1 W5 T76 GY | 40 | 4769 | LED | 4.70 | 96642816 | ||||
| <FLEX 24L50-740 WSC-S CL2 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270774 | ||||
| <FLEX 24L50-740 WSC-S CL2 W5 T60 GY | 40 | 4769 | LED | 4.50 | 96642804 | ||||
| <FLEX 24L50-740 WSC-S CL2 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270782 | ||||
| <FLEX 24L50-740 WSC-S CL2 W5 T76 GY | 40 | 4769 | LED | 4.70 | 96642812 |
▼ FleXity 500mA clear - symmetric distribution, bi-power
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L50-730 WSC-S BP CL1 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270801 | ||||
| <FLEX 24L50-730 WSC-S BP CL2 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270797 | ||||
| <FLEX 24L50-730 WSC-S BP CL2 W5 T60 GY | 40 | 4360 | LED | 4.50 | 96642825 | ||||
| <FLEX 24L50-740 WSC-S BP CL1 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270802 | ||||
| <FLEX 24L50-740 WSC-S BP CL1 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270810 | ||||
| <FLEX 24L50-740 WSC-S BP CL1 W5 T76 GY | 40 | 4769 | LED | 4.70 | 96642832 | ||||
| <FLEX 24L50-740 WSC-S BP CL2 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270798 | ||||
| <FLEX 24L50-740 WSC-S BP CL2 W5 T60 GY | 40 | 4769 | LED | 4.50 | 96642826 | ||||
| <FLEX 24L50-740 WSC-S BP CL2 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270806 | ||||
| <FLEX 24L50-740 WSC-S BP CL2 W5 T76 GY | 40 | 4769 | LED | 4.70 | 96642830 |
▼ FleXity 500mA clear - asymmetric distribution (street optic)
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L50-730 WSC CL1 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270789 | ||||
| <FLEX 24L50-730 WSC CL1 W5 T76 ANT | 40 | 4360 | LED | 4.70 | 96270793 | ||||
| <FLEX 24L50-730 WSC CL2 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270787 | ||||
| <FLEX 24L50-730 WSC CL2 W5 T60 GY | 40 | 4360 | LED | 4.50 | 96642817 | ||||
| <FLEX 24L50-740 WSC CL1 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270790 | ||||
| <FLEX 24L50-740 WSC CL1 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270794 | ||||
| <FLEX 24L50-740 WSC CL2 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270788 | ||||
| <FLEX 24L50-740 WSC CL2 W5 T60 GY | 40 | 4769 | LED | 4.50 | 96642818 | ||||
| <FLEX 24L50-740 WSC CL2 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270792 |
▼ FleXity 500mA clear - asymmetric distribution (street optic), bi-power
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L50-730 WSC BP CL1 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270813 | ||||
| <FLEX 24L50-730 WSC BP CL1 W5 T60 GY | 40 | 4360 | LED | 4.50 | 96642835 | ||||
| <FLEX 24L50-730 WSC BP CL2 W5 T60 ANT | 40 | 4360 | LED | 4.50 | 96270811 | ||||
| <FLEX 24L50-730 WSC BP CL2 W5 T60 GY | 40 | 4360 | LED | 4.50 | 96642833 | ||||
| <FLEX 24L50-730 WSC BP CL2 W5 T76 ANT | 40 | 4360 | LED | 4.70 | 96270815 | ||||
| <FLEX 24L50-740 WSC BP CL1 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270814 | ||||
| <FLEX 24L50-740 WSC BP CL2 W5 T60 ANT | 40 | 4769 | LED | 4.50 | 96270812 | ||||
| <FLEX 24L50-740 WSC BP CL2 W5 T60 GY | 40 | 4769 | LED | 4.50 | 96642834 | ||||
| <FLEX 24L50-740 WSC BP CL2 W5 T76 ANT | 40 | 4769 | LED | 4.70 | 96270816 |
▼ FleXity, 500 mA, helder - extra brede lichtspreiding (straatoptiek)
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L70-740 EWR CL1 CON T60 ANT | 55 | 6513 | LED | 4.50 | 96627905 |
▼ FleXity 1,05A clear - symmetric distribution
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L105-730 WSC-S CL1 W5 T60 ANT | 84 | 8067 | LED | 4.50 | 96271117 | ||||
| <FLEX 24L105-730 WSC-S CL1 W5 T76 ANT | 84 | 8067 | LED | 4.70 | 96271121 | ||||
| <FLEX 24L105-730 WSC-S CL2 W5 T60 ANT | 84 | 8067 | LED | 4.50 | 96271109 | ||||
| <FLEX 24L105-730 WSC-S CL2 W5 T60 GY | 84 | 8067 | LED | 4.50 | 96642843 | ||||
| <FLEX 24L105-740 WSC-S CL1 W5 T60 ANT | 84 | 8824 | LED | 4.50 | 96271118 | ||||
| <FLEX 24L105-740 WSC-S CL1 W5 T76 ANT | 84 | 8824 | LED | 4.70 | 96271122 | ||||
| <FLEX 24L105-740 WSC-S CL2 W5 T60 ANT | 84 | 8824 | LED | 4.50 | 96271110 | ||||
| <FLEX 24L105-740 WSC-S CL2 W5 T60 GY | 84 | 8824 | LED | 4.50 | 96642844 | ||||
| <FLEX 24L105-740 WSC-S CL2 W5 T76 ANT | 84 | 8824 | LED | 4.70 | 96271114 |
▼ FleXity 1,05A clear - symmetric distribution, bi-power
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L105-730 WSC-S BP CL1 W5 T76 GY | 84 | 8067 | LED | 4.70 | 96642853 | ||||
| <FLEX 24L105-730 WSC-S BP CL2 W5 T60 ANT | 84 | 8067 | LED | 4.50 | 96271107 | ||||
| <FLEX 24L105-740 WSC-S BP CL1 W5 T76 GY | 84 | 8824 | LED | 4.70 | 96642854 | ||||
| <FLEX 24L105-740 WSC-S BP CL2 W5 T60 ANT | 84 | 8824 | LED | 4.50 | 96271108 | ||||
| <FLEX 24L105-740 WSC-S BP CL2 W5 T76 ANT | 84 | 8824 | LED | 4.70 | 96271112 |
▼ FleXity 1,05A clear - asymmetric distribution (street optic)
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L105-730 WSC CL1 W5 T60 GY | 84 | 8067 | LED | 4.50 | 96642867 | ||||
| <FLEX 24L105-730 WSC CL2 W5 T60 ANT | 84 | 8067 | LED | 4.50 | 96271125 | ||||
| <FLEX 24L105-740 WSC CL1 W5 T76 ANT | 84 | 8824 | LED | 4.70 | 96271138 | ||||
| <FLEX 24L105-740 WSC CL1 W5 T76 GY | 84 | 8824 | LED | 4.70 | 96642872 | ||||
| <FLEX 24L105-740 WSC CL2 W5 T60 ANT | 84 | 8824 | LED | 4.50 | 96271126 | ||||
| <FLEX 24L105-740 WSC CL2 W5 T60 GY | 84 | 8824 | LED | 4.50 | 96642860 |
▼ FleXity 1,05A clear - asymmetric distribution (street optic), bi-power
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L105-730 WSC BP CL2 W5 T60 ANT | 84 | 8067 | LED | 4.50 | 96271123 | ||||
| <FLEX 24L105-740 WSC BP CL2 W5 T60 ANT | 84 | 8824 | LED | 4.50 | 96271124 |
▼ FleXity, 1,05 A, helder - extra brede lichtspreiding (straatoptiek)
| Description | Armatuur vermogen (W) | Armatuur opbrengst (lm) | Type | Gewicht (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| <FLEX 24L105-740 EWR CL1 CON T60 ANT | 84 | 9013 | LED | 4.50 | 96627906 |
