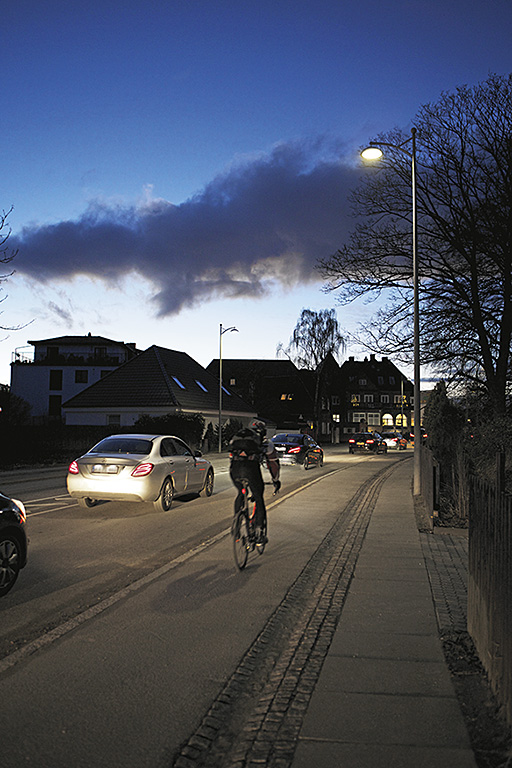

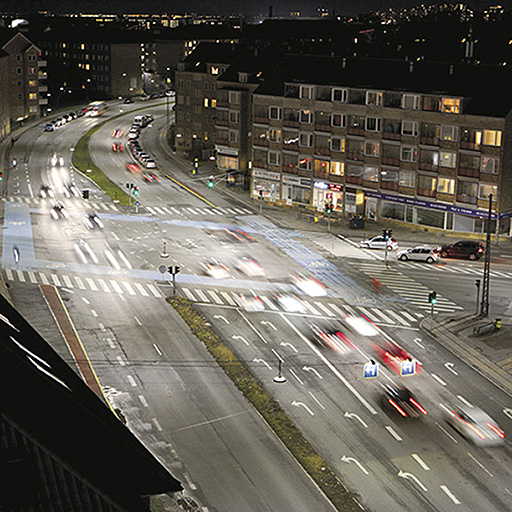

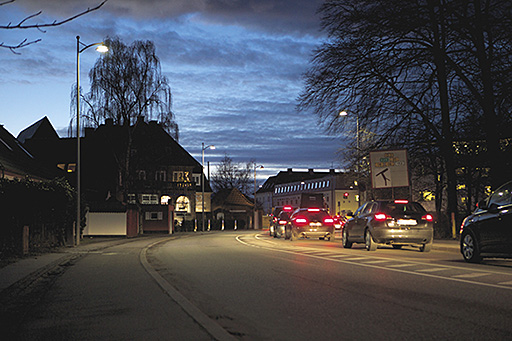

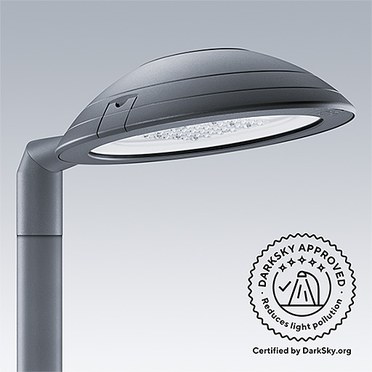

An LED smart urban lantern providing high user comfort and easy integration of connectivity and sensors into city environments

  • High lighting quality creates a comfortable ambience
  • Designed around the high performance R-PEC light engine, ensuring an excellent balance between performance and comfort
  • Wide choice of control options with a discreet RF variant
  • Flexible mounting options extend the scope of application

Materialen en Afwerking

Dome, 2 options : Thor L, UV stabilized polycarbonate with dark sandy grey finish, close to RAL7043 or with opal finish. Thor S, UV stabilized polycarbonate with opal finish, or die-cast aluminium EN AC-46100 with dark sandy grey finish.
Glass: toughened flat glass
Bracket: die cast aluminium EN AC-47100 (AS12U) treated against corrosion and powder coated dark sandy grey finish (close to RAL7043).
Body: die cast aluminium (Thor L, EN AC-44300 - Thor S, EN AC-46100) treated against corrosion and powder coated dark sandy grey finish (close to RAL7043).
Reflector: ABS white with UV treatment
Screws and closing set: Stainless steel

Installatie en Montage

Recommended mounting height: up to 8m. All post top and side entry versions are pre-wired. Supplied complete and ready to install, in a single box. Suitable for both post top and side entry mounting Ø60mm as standard. Side mounting: Ø60mm x 100mm long spigot, tilting -15° max, secured by 2 screws, delivered tilted at 0° by default. Top mounting: Ø60mm spigot, tilting +10° max, secured by 2 stainless steel screws, delivered tilted at 0° by default. Optimised with R-PEC optics for good control and performance. Catenary and suspended versions fixed through 27G, and 34G. Ø48 mm lateral and post top versions (external Ø60mm, internal Ø48mm), available on request.

Specificatie

To specify state:
IP66 durable urban LED lantern with full dome or opal dome. Luminaire flux up to 13 500 Llm. Efficiency up to 134 Llm/W. Ø60mm side entry, and post top mountings, as standard. Tilting from -15° to +10°. R-PEC optics. CLO, bi-power, DALI and Radio Frequency (RF) as standard. Ø48mm lateral, Ø48mm post top mountings, catenary and suspended versions (on request for Thor L). Compatible with a wide range of intelligent lighting controls.
As Thorn Thor.

New Product
LumExpress Product
eControl Product

Thor S, Post top mounting, full dome, narrow road optic

Thor S, Post top mounting, full dome, street comfort optic

Thor S, Post top mounting, full dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 36L50-730 RWET BPS CL2 FD W6 T60E556847LED10.0096665252
THOR S 36L50-740 RWET BPS CL2 FD W6 T60E557581LED10.0096665253
THOR S 36L70-730 RWET BPS CL2 FD W6 T60E779086LED10.0096665267
THOR S 36L70-740 RWET BPS CL2 FD W6 T60E7710060LED10.0096665268

Thor S, Post top mounting, full dome, wide street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 24L50-740 WSC BPS CL2 FD W6 T60E284927LED10.0096630372
THOR S 24L70-740 WSC BPS CL2 FD W6 T60E526581LED10.0096630373

Thor S, Post top mounting, full dome, pedestrian crossing optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 36L70-740 IVS BPS CL2 FD W6 T60E779623LED10.0096628696

Thor S, Post top mounting, opal dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 12L25-740 NR BPS CL2 OP T60E181357LED10.6096630261
THOR S 12L35-740 NR BPS CL2 OP T60E211839LED10.6096630262
THOR S 12L35-740 NR BPS CL2 OP W6 T60E211839LED10.6096630363
THOR S 12L50-740 NR BPS CL2 OP T60E272531LED10.6096630263
THOR S 12L50-740 NR BPS CL2 OP W6 T60E272531LED10.6096630364
THOR S 12L70-740 NR BPS CL2 OP T60E343394LED10.6096630264
THOR S 12L70-740 NR BPS CL2 OP W6 T60E343394LED10.6096630365
THOR S 24L35-740 NR BPS CL2 OP T60E343666LED10.6096630265
THOR S 24L35-740 NR BPS CL2 OP W6 T60E343666LED10.6096630366
THOR S 24L50-740 NR BPS CL2 OP T60E345034LED10.6096630266
THOR S 24L50-740 NR BPS CL2 OP W6 T60E345034LED10.6096630367
THOR S 24L70-740 NR BPS CL2 OP T60E586725LED10.6096630267
THOR S 24L70-740 NR BPS CL2 OP W6 T60E586725LED10.6096630368
THOR S 36L35-740 NR BPS CL2 OP T60E455472LED10.6096630268
THOR S 36L50-730 NR BPS CL2 OP W6 T60E616763LED10.6096665248
THOR S 36L50-740 NR BPS CL2 OP T60E617488LED10.6096630269
THOR S 36L50-740 NR BPS CL2 OP W6 T60E617488LED10.6096665249
THOR S 36L70-730 NR BPS CL2 OP W6 T60E838975LED10.6096665262
THOR S 36L70-740 NR BPS CL2 OP T60E839937LED10.6096630270
THOR S 36L70-740 NR BPS CL2 OP W6 T60E839937LED10.6096665263

Thor S, Post top mounting, opal dome, street comfort optic

Thor S, Post top mounting, opal dome, wet road optic

Thor S, Lateral mounting, full dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 36L50-730 NR BPS CL2 FD W6 L60E556763LED10.0096665286
THOR S 36L50-740 NR BPS CL2 FD W6 L60E557488LED10.0096665287
THOR S 36L70-730 NR BPS CL2 FD W6 L60E778975LED10.0096665299
THOR S 36L70-740 NR BPS CL2 FD W6 L60E779937LED10.0096665300

Thor S, Lateral mounting, full dome, street comfort optic

Thor S, Lateral mounting, full dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 36L50-730 RWET BPS CL2 FD W6 L60E556847LED10.0096665292
THOR S 36L50-740 RWET BPS CL2 FD W6 L60E557581LED10.0096665293
THOR S 36L70-730 RWET BPS CL2 FD W6 L60E779086LED10.0096665307
THOR S 36L70-740 RWET BPS CL2 FD W6 L60E7710060LED10.0096665308

Thor S, Lateral mounting, opal dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 36L50-730 NR BPS CL2 OP W6 L60E616763LED10.6096665288
THOR S 36L50-740 NR BPS CL2 OP W6 L60E617488LED10.6096665289
THOR S 36L70-730 NR BPS CL2 OP W6 L60E838975LED10.6096665302
THOR S 36L70-740 NR BPS CL2 OP W6 L60E839937LED10.6096665303

Thor S, Lateral mounting, opal dome, street comfort optic

Thor S, Lateral mounting, opal dome, wet road optic

Thor S, Suspended, full dome, narrow road optic

Thor S, Suspended, full dome, street comfort optic

Thor S, Suspended, full dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 36L50-730 RWET BPS CL2 FD MSU27G556847LED8.2096665357
THOR S 36L50-740 RWET BPS CL2 FD MSU27G557581LED8.2096665358
THOR S 36L70-730 RWET BPS CL2 FD MSU27G779086LED8.2096665360
THOR S 36L70-740 RWET BPS CL2 FD MSU27G7710060LED8.2096665361

Thor S, Suspended, full dome, wide street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 24L50-740 WSC BPS CL2 FD MSU34G284927LED8.2096630374
THOR S 24L70-740 WSC BPS CL2 FD MSU34G526581LED8.2096630375

Thor S, Catenary mounting, full dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 24L105-740 NR-S BPS CL2 FD MCA799285LED8.6096630287
THOR S 24L70-730 NR-S BPS CL2 FD MCA526074LED8.6096665342
THOR S 24L70-740 NR-S BPS CL2 FD MCA526725LED8.6096665343

Thor S, Catenary mounting, full dome, wide street optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR S 24L105-730 WS-S BPS CL2 FD MCA798330LED8.6096665350
THOR S 24L105-740 WS-S BPS CL2 FD MCA799222LED8.6096665351

Thor L, Post top mounting, full dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 NR BP CL2 FD 9M MTP728244LED13.9096643935
THOR L 48L50-740 NR BP CL2 RF FD 9M MTP729072LED13.9096643973
THOR L 48L50-740 NR BP CLO CL2 FD 9M MTP698165LED13.9096643932
THOR L 72L50-730 NR BP CL2 FD 9M MTP10812222LED14.8096643945
THOR L 72L50-740 NR BP CL2 FD 9M MTP10813449LED14.8096643942

Thor L, Post top mounting, full dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 RWET BP CL2 FD 9M MTP728312LED13.9096643937
THOR L 48L50-740 RWET BP CL2 FD 9M MTP729147LED13.9096643934
THOR L 48L50-740 RWET BP CL2 RF FD 9MMTP729147LED13.9096643975
THOR L 72L50-730 RWET BP CL2 FD 9M MTP10812363LED14.8096643947
THOR L 72L50-740 RWET BP CL2 FD 9M MTP10813604LED14.8096643944

Thor L, Post top mounting, full dome, street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 SC BP CL2 FD 9M MTP728417LED13.9096643936
THOR L 48L50-740 SC BP CL2 FD 9M MTP729262LED13.9096643933
THOR L 72L50-730 SC BP CL2 FD 9M MTP10812518LED14.8096643946
THOR L 72L50-740 SC BP CL2 FD 9M MTP10813775LED14.8096643943

Thor L, Post top mounting, opal dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 NR BP CL2 OP 9M MTP728244LED14.2096643895
THOR L 48L50-740 NR BP CL2 OP 9M MTP729072LED14.2096643892
THOR L 72L50-730 NR BP CL2 OP 9M MTP10812222LED14.6096643905
THOR L 72L50-740 NR BP CL2 OP 9M MTP10813449LED14.6096643902

Thor L, Post top mounting, opal dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 RWET BP CL2 OP 9M MTP728312LED14.2096643897
THOR L 48L50-740 RWET BP CL2 OP 9M MTP729147LED14.2096643894
THOR L 72L50-730 RWET BP CL2 OP 9M MTP10812363LED14.6096643907
THOR L 72L50-740 RWET BP CL2 OP 9M MTP10813604LED14.6096643904

Thor L, Post top mounting, opal dome, street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 SC BP CL2 OP 9M MTP728417LED14.2096643896
THOR L 48L50-740 SC BP CL2 OP 9M MTP729262LED14.2096643893
THOR L 72L50-730 SC BP CL2 OP 9M MTP10812518LED14.6096643906
THOR L 72L50-740 SC BP CL2 OP 9M MTP10813775LED14.6096643903

Thor L, Lateral mounting, full dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 NR BP CL2 FD 9M MLE728244LED13.9096643955
THOR L 48L50-740 NR BP CL2 FD 9M MLE729072LED13.9096643952
THOR L 72L50-730 NR BP CL2 FD 9M MLE10812222LED14.8096643965
THOR L 72L50-740 NR BP CL2 FD 9M MLE10813449LED14.8096643962
THOR L 72L50-740 NR BP CL2 RF FD 9M MLE10813449LED14.8096643974

Thor L, Lateral mounting, full dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 RWET BP CL2 FD 9M MLE728312LED13.9096643957
THOR L 48L50-740 RWET BP CL2 FD 9M MLE729147LED13.9096643954
THOR L 72L50-730 RWET BP CL2 FD 9M MLE10812363LED14.8096643967
THOR L 72L50-740 RWET BP CL2 FD 9M MLE10813604LED14.8096643964
THOR L 72L50-740 RWET BP CL2 RF FD 9MMLE10813604LED14.8096643976

Thor L, Lateral mounting, full dome, street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 SC BP CL2 FD 9M MLE728417LED13.9096643956
THOR L 48L50-740 SC BP CL2 FD 9M MLE729262LED13.9096643953
THOR L 72L50-730 SC BP CL2 FD 9M MLE10812518LED14.8096643966
THOR L 72L50-740 SC BP CL2 FD 9M MLE10813775LED14.8096643963

Thor L, Lateral mounting, opal dome, narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 NR BP CL2 OP 9M MLE728244LED14.2096643915
THOR L 48L50-740 NR BP CL2 OP 9M MLE729072LED14.2096643912
THOR L 72L50-730 NR BP CL2 OP 9M MLE10812222LED14.6096643925
THOR L 72L50-740 NR BP CL2 OP 9M MLE10813449LED14.6096643922

Thor L, Lateral mounting, opal dome, wet road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 RWET BP CL2 OP 9M MLE728312LED14.2096643917
THOR L 48L50-740 RWET BP CL2 OP 9M MLE729147LED14.2096643914
THOR L 72L50-730 RWET BP CL2 OP 9M MLE10812363LED14.6096643927
THOR L 72L50-740 RWET BP CL2 OP 9M MLE10813604LED14.6096643924

Thor L, Lateral mounting, opal dome, street comfort optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
THOR L 48L50-730 SC BP CL2 OP 9M MLE728417LED14.2096643916
THOR L 48L50-740 SC BP CL2 OP 9M MLE729262LED14.2096643913
THOR L 72L50-730 SC BP CL2 OP 9M MLE10812518LED14.6096643926
THOR L 72L50-740 SC BP CL2 OP 9M MLE10813775LED14.6096643923

Thor accessories

Description   Gewicht (kg)SAP Code
THOR S MRO 34G/D60 ANT5.0096275024
