Isaro Pro

  • Isaro Pro

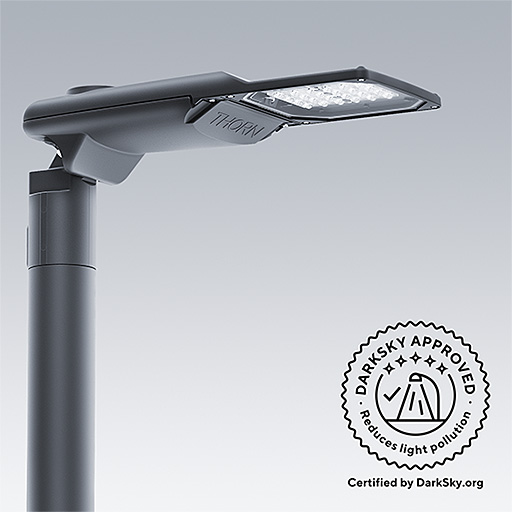

This robust and high-performance LED street lantern brings comfort and safety to any road or street

  • Future proofing: upgrading of the Optic and Control Gear can be performed on site if required; CMS options can be incorporated /upgraded in the course of life with the 7 pin NEMA socket option; removable optic and gear assembly allows easy interchange
  • Easy clean design including flat glass optical cover and optimally sized smooth heat dissipation cover
  • Range of optics, tilt capability, tuneable flux and programmable driver facilitate optimisation of lighting design and minimisation of power consumption
  • Tool-less top opening and incorporation of Automatic Disconnect for easy, safe access and simple electrical testing or maintenance operations

Materialen en Afwerking

Version GY-S: Housing, canopies : die-cast aluminium, light grey 150 sanded textured (close to RAL9006 non painted) and spigot die cast aluminium non painted
Version ANT: Housing, canopies, spigot: die-cast aluminium texturized anthracite grey (close to RAL7043),
Other RAL colours on request, additional treatment for coastal atmosphere as variant.
Glass: 5 mm thick
Fixings: stainless steel

Installatie en Montage

Suitable for mounting on top Ø76mm or Ø60mm (by ordering the correct version or adapter).
Suitable for mounting on side Ø60mm or Ø42mm (by ordering the correct version or adapter).
Variable tilting setting: 0° to +20° on post top mounting and -15° to +15° on lateral mounting, in 5° steps.
Cable gland for Ø8 to 12mm cable. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

Specificatie

To specify state:
A state of the art, LED lighting lantern, addressing all minor road and street lighting applications. Thorn's rigorous focus on functionality needs and return on investment led to an easy to understand and service LED luminaire delivering performance and sustainability, thanks to its high quality of aluminium. It integrates the latest available technology of light source, gear and controls as an answer to the demand for energy savings and efficiency. Easy to understand, specify, install, maintain & control are all the concrete advantages offered by this rational led lighting solution ensuring the most optimised cost of ownership possible.
As Thorn Isaro Pro

New Product
LumExpress Product
eControl Product

Isaro Pro Small, Narrow road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
IP 12L105-740 NR BPS CL2 M60 ANT415036LED5.5096276037
IP 12L35-740 NR BPS CL2 M60 ANT151942LED5.5096275832
IP 12L35-740 NR BPS CL2 M76 ANT151942LED5.5096275833
IP 12L35-740 NR BPS CL2 T60F ANT W6151942LED6.2096275965
IP 12L35-740 NR BPS CL2 T76F ANT W6151942LED6.2096275966
IP 12L50-740 NR BPS CL2 M60 ANT202675LED5.5096276036
IP 12L70-740 NR BPS CL2 M60 ANT283595LED5.5096275842
IP 12L70-740 NR BPS CL2 M76 ANT283595LED5.5096275843
IP 12L70-740 NR BPS CL2 T60F ANT W6283595LED6.2096275967
IP 12L70-740 NR BPS CL2 T76F ANT W6283595LED6.2096275968
IP 24L105-730 NR BPS CL2 M60 ANT809206LED5.7096276027
IP 24L105-740 NR BPS CL2 M60 ANT809974LED5.7096276038
IP 24L35-740 NR BPS CL2 M60 ANT283876LED5.7096275858
IP 24L35-740 NR BPS CL2 M76 ANT283876LED5.7096275859
IP 24L35-740 NR BPS CL2 T60F ANT W8283876LED6.5096275969
IP 24L35-740 NR BPS CL2 T76F ANT W8283876LED6.5096275970
IP 24L50-740 NR BPS CL2 M60 ANT385337LED5.7096275903
IP 24L50-740 NR BPS CL2 M76 ANT385337LED5.7096275941
IP 24L50-740 NR BPS CL2 T60F ANT W8385337LED6.5096275989
IP 24L50-740 NR BPS CL2 T76F ANT W8385337LED6.5096275990
IP 24L70-740 NR BPS CL2 M60 ANT537158LED5.7096275868
IP 24L70-740 NR BPS CL2 M76 ANT537158LED5.7096275869
IP 24L70-740 NR BPS CL2 T60F ANT W8537158LED6.5096275971
IP 24L70-740 NR BPS CL2 T76F ANT W8537158LED6.5096275972

Isaro Pro Small, Wide road optic

Isaro Pro Small, Extra wide road optic

DescriptionArmatuur vermogen (W)Armatuur opbrengst (lm)   TypeGewicht (kg)SAP Code
IP 12L35-740 EWR BPS CL2 M60 ANT151918LED5.4896275915
IP 12L35-740 EWR BPS CL2 M76 ANT151918LED5.4896275916
IP 12L35-740 EWR BPS CL2 T60F ANT W6151918LED6.2496275981
IP 12L35-740 EWR BPS CL2 T76F ANT W6151918LED6.2496275982
IP 12L70-740 EWR BPS CL2 M60 ANT283551LED5.4896275919
IP 12L70-740 EWR BPS CL2 M76 ANT283551LED5.4896275920
IP 12L70-740 EWR BPS CL2 T60F ANT W6283551LED6.2496275983
IP 12L70-740 EWR BPS CL2 T76F ANT W6283551LED6.2496275984
IP 24L35-740 EWR BPS CL2 M60 ANT283828LED5.5396275923
IP 24L35-740 EWR BPS CL2 M76 ANT283828LED5.5396275924
IP 24L35-740 EWR BPS CL2 T60F ANT W8283828LED6.4996275985
IP 24L35-740 EWR BPS CL2 T76F ANT W8283828LED6.4996275986
IP 24L50-740 EWR BPS CL2 M60 ANT385271LED5.5396275952
IP 24L50-740 EWR BPS CL2 M76 ANT385271LED5.5396275953
IP 24L50-740 EWR BPS CL2 T60F ANT W8385271LED6.4996275993
IP 24L50-740 EWR BPS CL2 T76F ANT W8385271LED6.4996275994
IP 24L70-740 EWR BPS CL2 M60 ANT537069LED5.5396275927
IP 24L70-740 EWR BPS CL2 M76 ANT537069LED5.5396275928
IP 24L70-740 EWR BPS CL2 T60F ANT W8537069LED6.4996275987
IP 24L70-740 EWR BPS CL2 T76F ANT W8537069LED6.4996275988
