EyeKon LED / EYE VS LED400-830 MWS E3 S ANT

96666049

Data Sheet

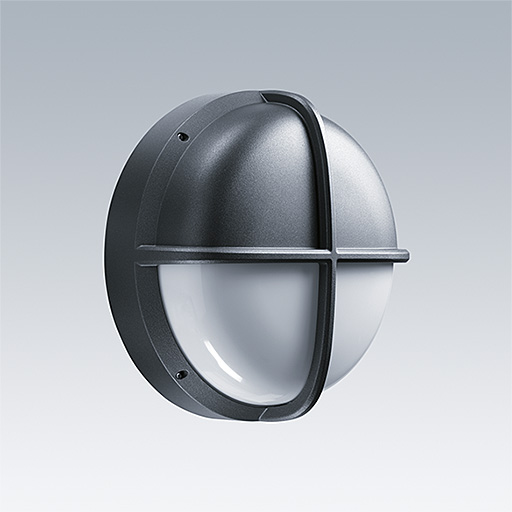

Rond, schokbestendig LED wandarmatuur. niet stuurbaar voorschakelapparatuur Noodverlichtingscircuit, manuele test (3uur). Klasse I elektrisch, IP65, IK10. Behuizing: klein formaat, gegoten aluminium (LM6), poedergelakt antraciet. Afdekking: opaal polycarbonaat (PC) met gegoten aluminium vizier kenmerk. Elektrische verbinding via 4 x 2 x 2.5mm² aansluitdoos. Met geïntegreerde bewegingssensor voor aan/uit bediening. Compleet met 3000K LED

Afmetingen Ø285 x 150 mm
Armatuurvermogen: 7 W
Gewicht: 2,45 kg

Mode selectie
  • Lamppositie:STD - standaard
  • Lichtbron:LED
  • Lichtstroom van armatuur*:400 lm
  • Totale noodlichtstroom:75 lm
  • Lichtrendement van armatuur*:57 lm/W
  • Kleurweergave-index min.:80
  • Voorschakelapparaat 1:1 x 28000704 LC 10W 150-400mA flexC SC EXC
  • Voorschakelapparaat 2:1 x 89899858 DRV EM TR LBS P MT NO 1W 1#Screw
  • Gecorreleerde kleurtemperatuur*:3000 Kelvin
  • Kleurlocatietolerantie (initiële MacAdam):3
  • Opgegeven gemiddelde levensduur*:L90 50000 h bij 25 °C
  • Armatuurvermogen*:7 W
  • Laadcapaciteit:4 W
  • Sturing:FO
  • LED
  • CE
  • EN 55015
  • GLedNr
  • 850°
  • IK10
  • IP65
  • LLedNr
  • SC1
  • Ta = 0 to +25
