Olsys Area / OLSYS2 36L70 730 CL2 AREA A/S

96633555

Data Sheet

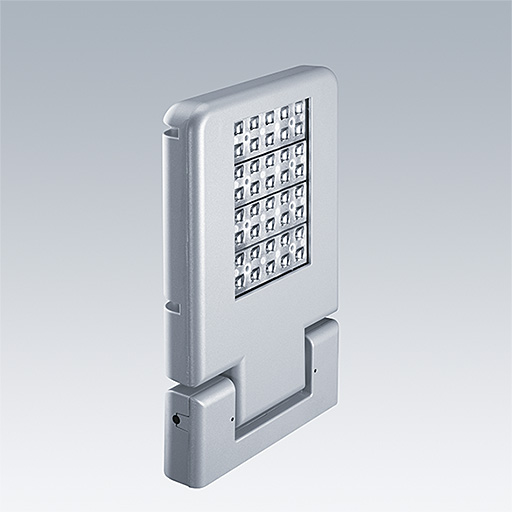

Een LED schijnwerper met asymmetrische verdeling voor toepassingen van ruimteverlichting. niet stuurbaar voorschakelapparatuur. Klasse II elektrisch, IP66, IK08. Behuizing: gegoten aluminium (AS9U), poedergelakt zilvergrijs (RAL 9006). Afdichting: (onbekend)veredeld glas. Optieken: aluminium. Installatieklaar geleverd in één doos. Montage-accessoires apart te bestellen. Compleet met 3000K LED

omgevingstemperatuur: -30°C tot +50°C

Afmetingen 505 x 337 x 76 mm
Armatuurvermogen: 78,5 W
Gewicht: 9,85 kg
Scx: 0.17 m²

Mode selectie
  • Lamppositie:STD - standaard
  • Lichtbron:LED
  • Lichtstroom van armatuur*:9895 lm
  • Lichtrendement van armatuur*:126 lm/W
  • Kleurweergave-index min.:70
  • Gecorreleerde kleurtemperatuur*:3000 Kelvin
  • Kleurlocatietolerantie (initiële MacAdam):4
  • Opgegeven gemiddelde levensduur*:L90 50000 h bij 25 °C
  • Voorschakelapparaat:1x EL2
  • Armatuurvermogen*:78,5 W
  • Sturing:Fixed output
  • LED
  • CE
  • ENEC
  • GLedReP
  • IK08
  • IP66
  • Coastal_C3
  • LLedReP
  • SC2
  • Ta=50°C
